Equipment for measuring and checking

Analogue rail magnetic thermometer TMA 70

This tool is used for measuring the temperature of the rail. It has a clear and visible double measuring range, from – 30°C to + 70°C and from – 22°F to + 158°F, for a rapid and accurate reading of the temperature and a magnet in the back side, for holding it into position, when […]

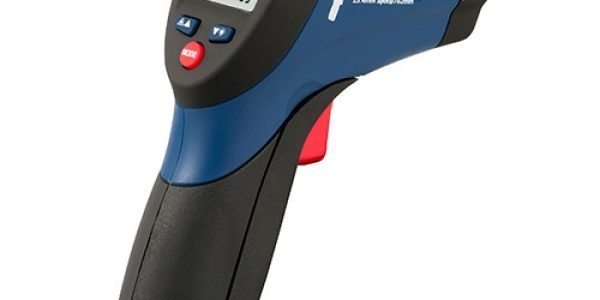

Digital infrared themometer TDI 1000

The TDI 1000 thermometer is an infrared professional device that measures the temperature at a distance, of different surfaces. The infrared thermometer is easy to use and its laser point allows to aim precisely the object to be measured. The infrared thermometer can be used also in difficult situations: it is backlit and the laser […]

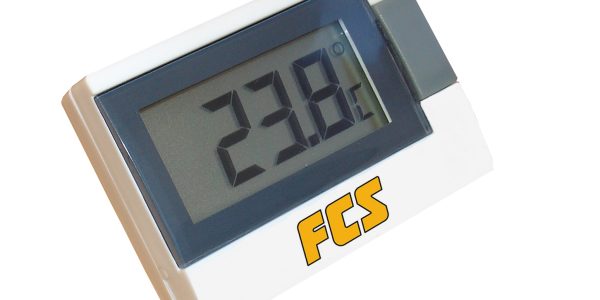

Digital rail magnetic thermometer TMD 60

Tool used to measure the rail temperature. It has a digital display with measurement scale from – 10 ° C to + 60 ° C, for a fast and accurate temperature reading and a magnet in the back side, for holding it into position, when applied to ferrous surfaces. Its small size allows it to […]

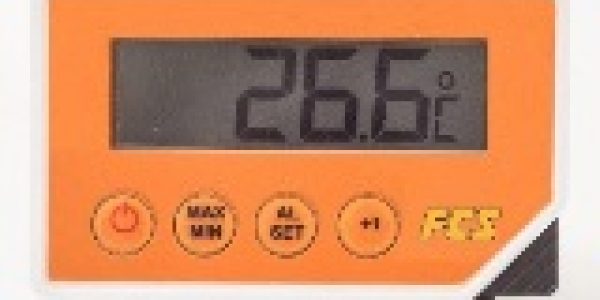

Digital rail magnetic thermometer TMD 70

Tool used to measure the rail temperature. It has a digital display with 2 measurement scales: one from – 50 ° C to + 70 ° C and one from – 122 ° F to + 158 ° F, for a fast and accurate temperature reading and a magnet in the back side, for holding […]

Digital switch and rail profile gauge PTS 1435

Our digital switch and rail profile gauge PTS 1435 is used for measurement of the transverse sections of switch elements in the characteristics points of frogs and half of a pair of switches. The gauge is based on the track during the measurement cycle, using the special beam as the datum. Having located the gauge […]

Digital thermometer with magnetic probe TDS 1300

This thermometer is a highly professional and resistant tool and it can be used also in demanding environments. It is particularly indicated for measuring the exact temperature of the rail, thanks to a sensitive magnetic probe which is complete of calibration certificate. Model   Digital thermometer TDS 1300   Weight without probe gr 200   […]

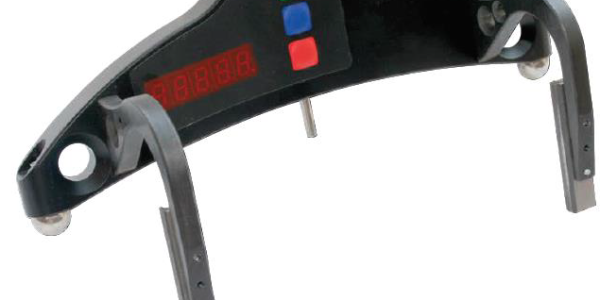

Digital wheel diameter measuring device CDR 1400

The CDR 1400 has been designed for measuring wheel rolling circle diameter (amount of wear) of railway, metro and tram in the course of checkup, examination, repair and formation of wheel sets. The measurement of the diameter is performed according to the “three points” technique, without the complete wheel coverage. Electronic gauge contains two ball […]

Double track line gauge setting equipment BSM 50

The double track line gauge setting equipment BSM 50, manufactured in steel, is used for adjusting the track gauge of the rails,  before fastening them to the base construction. It is composed of a bar with two heads placed on its extremities and a hand crank to widen or tighten the rails. Finally, it is […]

Gauge bar

Our gauge bar, manufactured in special steel, is used for correcting the gauge of the rails. There are 2 holes, in which a special lever must be inserted to widen or tighten the rails. Electrically insulated, easy to use and installed in the rail foot, this bar is suitable for the most common gauges, including […]

Joint gap measuring device

This instrument made of brass is suitable for measuring the joints of the rails. It has a graduated scale for a easy reading. It has a maximum inclination of 30 °. Model   Joint gap measuring device   Material   brass       Maximum inclination   30°

Optical level

Optical level at 28 zoom with luminous lenses for clear and precise readings on the large distance in outdoor leveling works. Equipped with a centesimal graduated circle and magnetic compensator for precise readings even in the presence of vibrations. Optional: aluminum tripod with flat base and telescopic graduated rod of 5 meters. Model   Optical […]

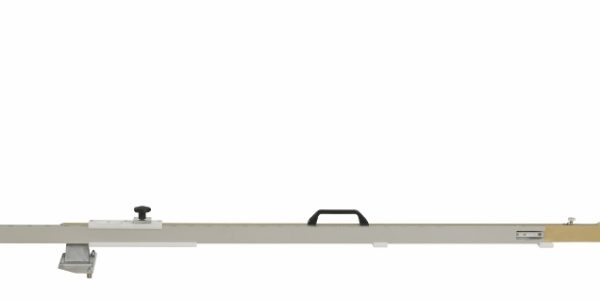

Platform clearance gauge

This device is used for measuring the height from the top of rail to the platform edge and for measuring the distance between the center of the track and the platform. It is composed of a rectangular aluminium insulated tube and a measuring rule. Available for other track gauges. Model   Platform clearance gauge   […]

Rail alignment bar

Tool manufactured in aluminum with two levels (one horizontal and one vertical) and used for a first measurement of the alignment of the rails. Model   Rail alignment bar   Material   Alluminium body with lenght wise and vertical level   Length mm 1500   Weight kg 1,3

Rail measuring roller

Practical and easy to use, it is suitable for rail and road lines. It consists of a foldable aluminum structure with teflon wheels, an easy to read display with reset, parking brake and comfortable handle. Model   Rail measuring roller       For line   railway/road

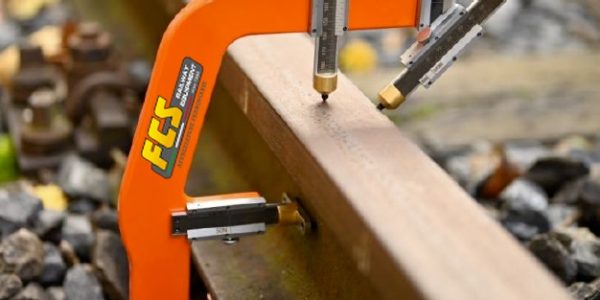

Rail wear measuring device MUR 45

This tool is a rail vertical (0°) and lateral (45°) wear measuring device and it reads the height dimension of the rail parallel to the base of rail on different rail types and lateral wear value at 45°. The device can be easily attached to the rail base surface and fixes itself with 6 magnets […]

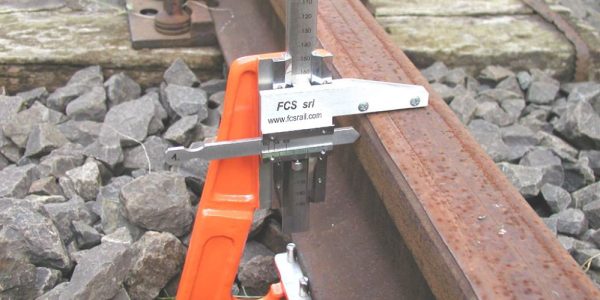

Rail wear measuring device MUR 90

This tool is used for measuring the height and side wear of different rail types. In addition, it measures also the directing surface wear value at 14 mm down from the plane determined by the running surface. The device can be easily attached to the rail base surface and fixes itself with magnets built into […]

Railway metre gauge

Device consisting of a group of rulers, hinged at the ends, kept folded on each other, for a practical transport that, ones realigned and lyined, become a metrical rod, which is suitable for measuring the track gauge. It has a sliding bar of 110 mm, that allows to measure the track gauge until 1510 mm. […]

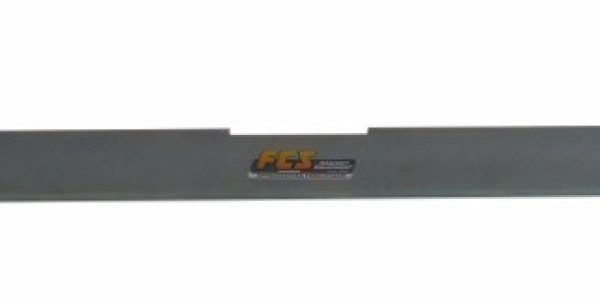

Straight edge

Tool manufactured in special steel and used for a first measurent of the alignment of the rails. It is suitable for PRA ELITE and P.R.L. weldings (at long preheating) and for all types of rails. Model   Straight edge       For welding   PRA ELITE e P.R.L (at long preheating) and for all types […]

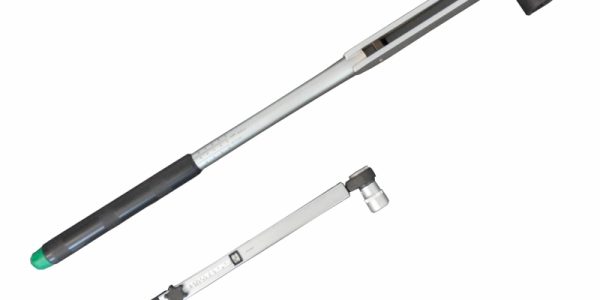

Torque wrench

The torque wrench is used for performing precise and constant tightening: setting the proper torque is easy using a fold-away torque adjuster. It is equipped with a thrust bearing for soft calibration purposes and it has a double signal when the set torque is reached: acoustical click and effort decrease. The handle turns freely to […]

Track and switch gauge

Device suitable for measuring the track gauge and the space between the operative face of check rail and running edge of further rail. In addition, it can be used for check the rail distance (i.e. the second space between operative face of check rail and running edge of further rail –1394 mm) and the switch […]

Track gauge

Tool used for checking the rail gauge, after the laying of the track lines. It has been manufactured in special steel and electrically insulated and presents, in addition, a bubble-level, for checking the alignment between two rails. Subsequently, it is necessary to use a calibrated and certificated track-gauge, for correctly measuring and adjusting the rail […]

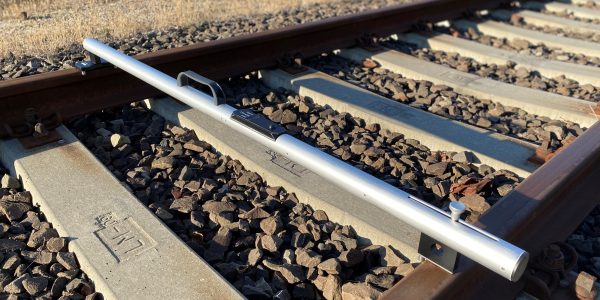

Track gauge and superelevation measuring device

Device suitable for measuring the track gauge and the superelevation. Light-weight and easy to use, it is composed of a rectangular aluminium aislated tube and a practice central handle for moving and placing it easily. Available for many types of track gauge. Model   Track gauge and superelevation measuring device   Superelevation mm -30 +200 […]

Track square

Our track square, lightweight and manufactured in special steel, is insulated from rail to rail and has a bubble in the middle. It is used for a first check of the alignment of the rails. Subsequently, it is necessary to use a calibrated and certified gauge for a correct and precise measurement of the alignment. […]

Track, switch and superelevation gauge

Device suitable for measuring the track gauge, the superelevation and the space between the operative face of check rail and running edge of further rail. In addition, it can be used for check the rail distance (i.e. the second space between operative face of check rail and running edge of further rail –1394 mm) and […]

Wheels wear dial gauge

Tool used for checking if the rail wheels are worn. Practical and light-weight, it is supplied with a black case, for transporting and storing it easily. Model   Wheels wear dial gauge       Weight kg 0,17

Wheels wear rail gauge

Measuring device used for checking the wear of the rail wheels. It is supplied in a wooden case, that is used for transporting and storing it safely. Model    Wheels wear rail gauge       Weight kg 0,5
