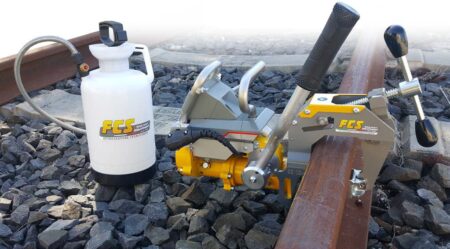

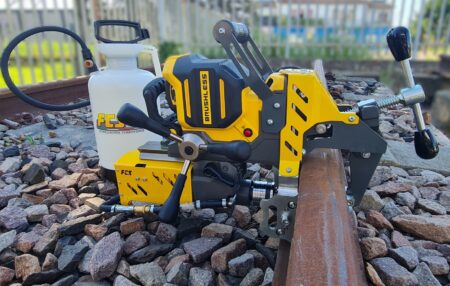

The lightweight and easily manoeuvrable e-TFR drill is equipped with a 2-speed battery power supply and is capable of fast and precise drilling of Vignola and grooved rails. The cutter feed lever is directly connected to the motor. This system makes it possible to use only the power that is needed for drilling at that moment, thus limiting wear and tear on the cutter. In addition, the use of coolant also allows prolonged use of the cutter. The quick fastening to the rail and the fully protected action of the tool guarantee minimum effort and maximum safety for the operator. The drilling time is approximately 20 to 60 seconds and depends on the diameter of the hole and the hardness of the rail. It is also possible to use helical drills and is equipped with an illumination LED with a special button for operation.We also supply templates for any type of rail (specifying the height of the drilling axis, i.e. from the foot to the centre of the rail) and, optionally, 4- or 6-hole locator for Vignola and grooved rails respectively.The 5-litre tank, wooden container and drill pin are included with the machine.
| Electric engine (kW) | 1,1 |
|---|---|
| Max. drilling diameter (mm) | 40 |
| Dry weight (kg) | 14,6 |
