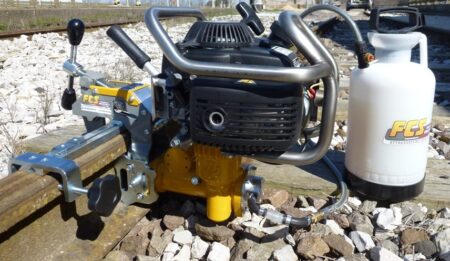

The TFR 330 P rail drilling machine, which is lightweight and easy to use, is composed of a 4-stroke engine and is suitable for drilling vignole and grooved rails. The advancing lever is directly connected to the petrol engine. This system allows to use only the power which at that moment is necessary for the perforation, limiting the wear of the tool and the fuel consumption. Its large coolant tank allows prolonged use of the drill bits. The quick fixing to the rail, the action of the tool completely protected and its balanced handle with safety switch, guarantee minimum effort and maximum safety for the operator. Drilling time: ranges from 20 to 60 seconds, depending on the diameter of the hole and the hardness of the rail. With the machine we supply the rail profile templates for any type of rail (specifying the height of the hole, that is, from the foot to the center of the rail) and, optionally, the drilling templates (hole locators) of 4 or 6 perforations can also be supplied, respectively for vignole and grooved rails. The 5 liter tank, the wooden box and the pin for the drill bit are included with the machine.
Model | TFR 330 P |
|
Engine | Honda/Petrol | |
Power engine |
kW | 1,5 |
Max. hole drilling capacity |
mm | 40 |
Dry weight | kg | 17,8 |
TFR 330 P
