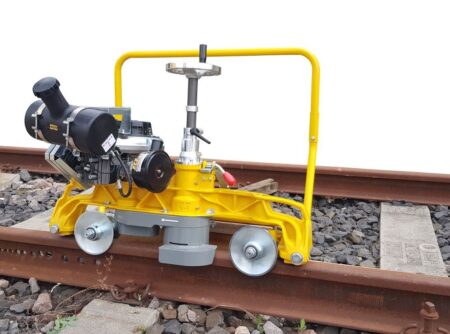

This grinding machine has been designed to carry out the re-profiling of the rail head after welding. This machine has a mixture engine, which is lubricated even when the machine is tilted by 90°. The transmission from the engine to the spindle housing of the grinding stone is done by a trapezoidal belt with tension regulator. The protected action of the belt, the stone and a comfortable guide bar ensure maximum safety and minimum effort for the operator. The machine is also composed of two rollers for longitudinal movement on the rail, two lateral supports that ensure stability during operation, handwheel with graduated scale to adjust the depth of grinding, block and guide rod for tilting the machine. The machine can be optionally supplied with a kickstand and also grinding stones can be provided upon request.
Model | MPR 4000 M |
|
Engine | Minsel/Mixture | |
Engine power |
kW | 4,9 |
Grinding stone rotation speed | rpm | 4500 |
Dimensions | mm | 750x500x500 |
Dry weight | kg | 64,5 |
