Track and switch gauge

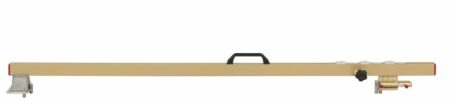

Device suitable for measuring the track gauge and the space between the operative face of check rail and running edge of further rail. In addition, it can be used for check the rail distance (i.e. the second space between operative face of check rail and running edge of further rail –1394 mm) and the switch opening (i.e. the space between running edge and back of open switch). Light-weight and easy to use, it is composed of a rectangular aluminium aislated tube that, once placed on the rails, it is not necessary to turn, during the measuring phase, thanks to its centralized detection system. In addition, it is equipped with a practice central handle for moving and placing it easily. Available for these types of track gauge: 381 mm, 600 mm, 750 mm, 760 mm, 891 mm, 900 mm, 914 mm, 1.050 mm, 1.100 mm, 1.435 mm, 1.524 mm and 1.600 mm.

Calibro per deviatoi

Model    Track and switch gauge

Gauge 1435 mm -10 +40

Space between operative face of check rail and running edge of further rail 1394 mm -12 +12

Weight kg 2,5



Additional information
