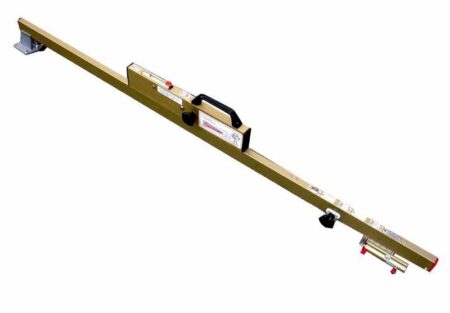

Device suitable for measuring the track gauge, the superelevation and the space between the operative face of check rail and running edge of further rail. In addition, it can be used for check the rail distance (i.e. the second space between operative face of check rail and running edge of further rail –1394 mm) and the switch opening (i.e. the space between running edge and back of open switch). Light-weight and easy to use, it is composed of a rectangular aluminium aislated and anodised tube that, once placed on the rails, it is not necessary to turn, during the measuring phase, thanks to its centralized detection system. In addition, it is equipped with a practice central handle for moving and placing it easily. Available for various types of track gauge.
Model | Track, switch and superelevation gauge |
|
Superelevation | mm | -30 +200 |
Gauge 1435 | mm | -10 +40 |
Space between operative face of check rail and running adge of further rail 1394 | mm | -12 +12 |
Weight | kg | 3,6 |
